Einzelheiten zum Produkt
Herkunftsort: CHINA
Markenname: Beyde
Zertifizierung: CE
Modellnummer: 500/1+6
Zahlungs- und Versandbedingungen
Min Bestellmenge: 1 Set
Verpackung Informationen: Sicherheitsbehälterpackung
Lieferzeit: 90 Tage
Zahlungsbedingungen: L/c, d/a, d/p, t/t
Versorgungsmaterial-Fähigkeit: 200 Set/Jahr
Verwendung: |
Stranding |
Farbe: |
Nach Kundenanforderung |
Name: |
Röhrenanschwemmungs-Maschine |
Anwendung: |
Stahl,Aluminium und Stahldraht |
Drahtmaterial: |
Stahl, kupfern |
Zentrale Profitspule: |
PN400-PN630 |
Aufnahmespulengröße: |
PND800-PND1600 |
Maximaler bloßer Drahtdurchmesser: |
4mm |
Garantie: |
12 Monate |
Verwendung: |
Stranding |
Farbe: |
Nach Kundenanforderung |
Name: |
Röhrenanschwemmungs-Maschine |
Anwendung: |
Stahl,Aluminium und Stahldraht |
Drahtmaterial: |
Stahl, kupfern |
Zentrale Profitspule: |
PN400-PN630 |
Aufnahmespulengröße: |
PND800-PND1600 |
Maximaler bloßer Drahtdurchmesser: |
4mm |
Garantie: |
12 Monate |

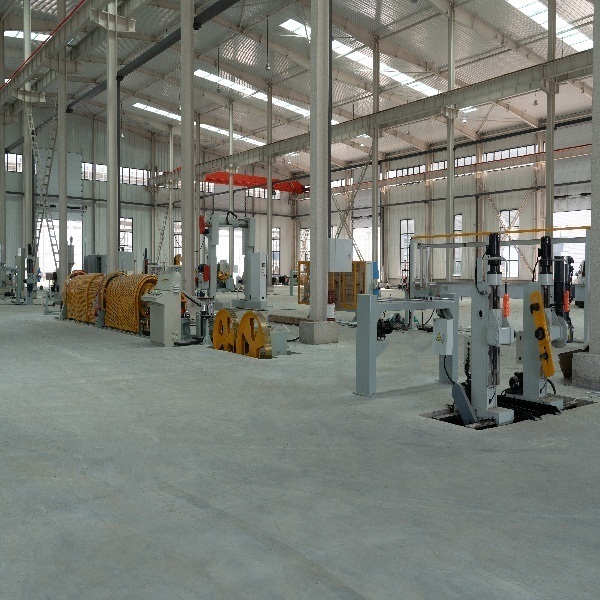

China Manufacture Big Bearing Tubular Stranding Machine 500mm Model Tubular Stranding Machine
This high speed machines mainly used for stranding copper wire,aluminum wire, steel wire,ACSR and wire rope.Accompanied with taping head,it can used for insulation cores and some control cable stranding process.
Application:
This high speed machines mainly used for stranding copper wire,aluminum wire, steel wire,ACSR and wire rope.Accompanied with taping head,it can used for insulation cores and some control cable stranding process.
Component:
Central pay-off. cage host,taping device (optional),capstan,take-up and traverse device,and electric control system.
Model | 400 | 500 | 630 | |
Inlet wire Dia.(mm) | Conductor | 1.5-3.5 | 1.8-4.0 | 2.0-5.0 |
Steel | 1.0-2.5 | 1.5-3.0 | 1.8-4.0 | |
Cores | 1.2-3.5 | 1.5-5.0 | ||
Frame rotation speed(r/min) | 700 | 600 | 400 | |
Stranding Pitch(mm) | 41-312 | 44-334 | ||
Linear Speed(m/min) | 27-205.3 | 22-166.85 | 14-108.9 | |
Capstan Dia.(mm) | 800+1000 | 1000+1200 | 1000+1250 | |
Size of tak-up bobbin | PN1250 | PN1600 | PN1600 |
FAQ
1.Q: Where is your factory located? A: Our factory is located in HEJIAN CITY, HEBEI PROVINCE, CHINA,
we are near Beijing, Tianjin and Shijiazhuang air port, and CANGZHOU WEST high-speed railway station.
2.Q: What is the advantage about your company? A: Our company has skilled technical engineer and workers and professional production line.
3.Q: Why should l choose your products? A: We are direct manufacturer, we can ensure the stable product quality and provide in time service.
4.Q: The logo and the color can be customized? A: Yes
5.Q:What's your near sea loading port: Tianjin port
